Fire Rated 30 Minute Door

30 Min Halspan fire and smokes seals assemblies

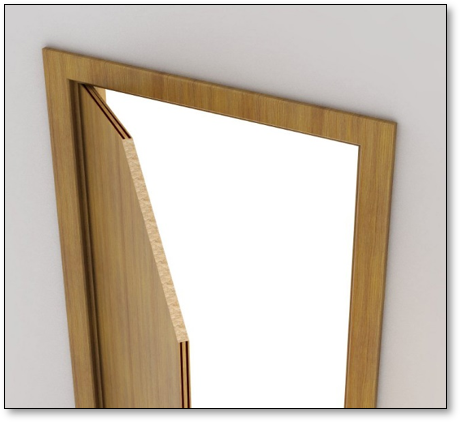

Halspan 30 minutes Timber Door Assemblies

Halspan 30 Fire and Smokes seals have been fully tested to BS476 pt22 1987 and BS EN 1634 pt1 2000 for performance to 30 minute fire resistance. Additional testing has been undertaken to EN1634 pt1 in Spain, Poland, Hungary and other EU states. Full details are available on request.

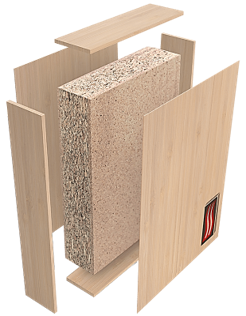

30 Min Layer Details

General Properties

44mm Internal Fire Door Black
Fire Rated to 30 minutes
Weight = 27.3 kg m²
Suitable for PAS23/24
U-Value (W/km²) = 2.0(Doorest)
Durability Tested to Severe Duty
Suitable for Veneer, Laminated or Paint Finishes

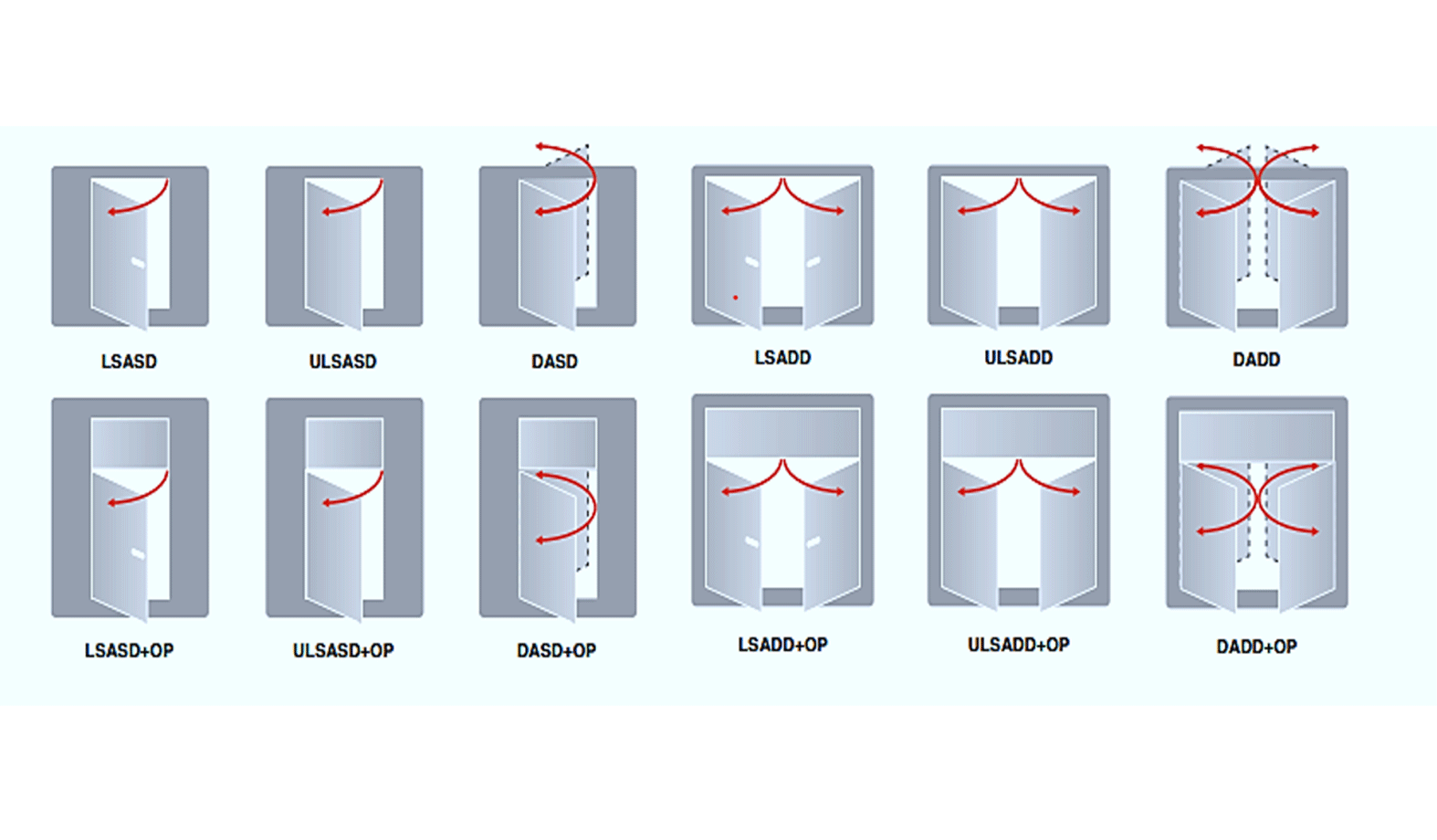

Doorest Congiguration

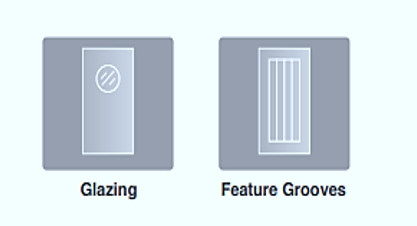

Dsesign Options

Sales & Hardware

HALSPAN FD30 DATA SHEET

description

Halspan Optima comprises a 3 layer particle board manufactured by continous press to produce a high performance timber door black.

Thickness

44mm (FD30)

Blank Sizes mm

2060 x 840*
2135 x 915
2440 x 1220*
2800 x 915*
Other size available on request (minimum order applies) *Only available as 44mm FD30

General Properties

Compsition	Physical Properties
Spruce/Fire/recycled timber	Average density (by Weight)-620kg/m³(+/-10%)
Urea formaldehyde resin	Moisture content -ex factory -6-10%
Paraffin wax/silica	Formaldehyde emission -EN13986-E1
	80 grit surface sanding

Performance criteria (Refer to relevent technical support manuals for full details)

Fire
BS 476: part 22:1987
BS EN1634-1:2000/2008 & BS EN 1363-1:1999
ul 10c

Acoustic
BS EN ISO 10140-2:2010

Operation & Durability
DD 171: 1997 clauses 4.3, 4.4, 4.9,4.10,4.11 -severe duty
EN 1191:2000 - in exess of 500,000 cycles
EN 947, EN 948, EN 949, and EN 950 -Severe duty
PAS 23 clause 6.3 - Evaluated against
PAS 24: 2012 Clause A.3, B.4.3, B.4.4.2, B.4.4.3, B.4.4.4, B.4.5, B.4.6, B.4.7, B.4.8 & B.4.9
BS EN 12046-2: 2000
BS 6375 Part 3: 2009 annex C
BS 6375 Part 3: 2009 annex A

Thermal
BS EN ISO 10077-2:2003
BS EN ISO 10077-2:2006

HALSPAN FIRE SEALS

Halspan have developed a range of fire and smoke seals to complement their range of fire rated
door blanks.
been undertaken to EN1634 pt1 in Spain, Poland, Hungary and other EU states.
Full details are available on request

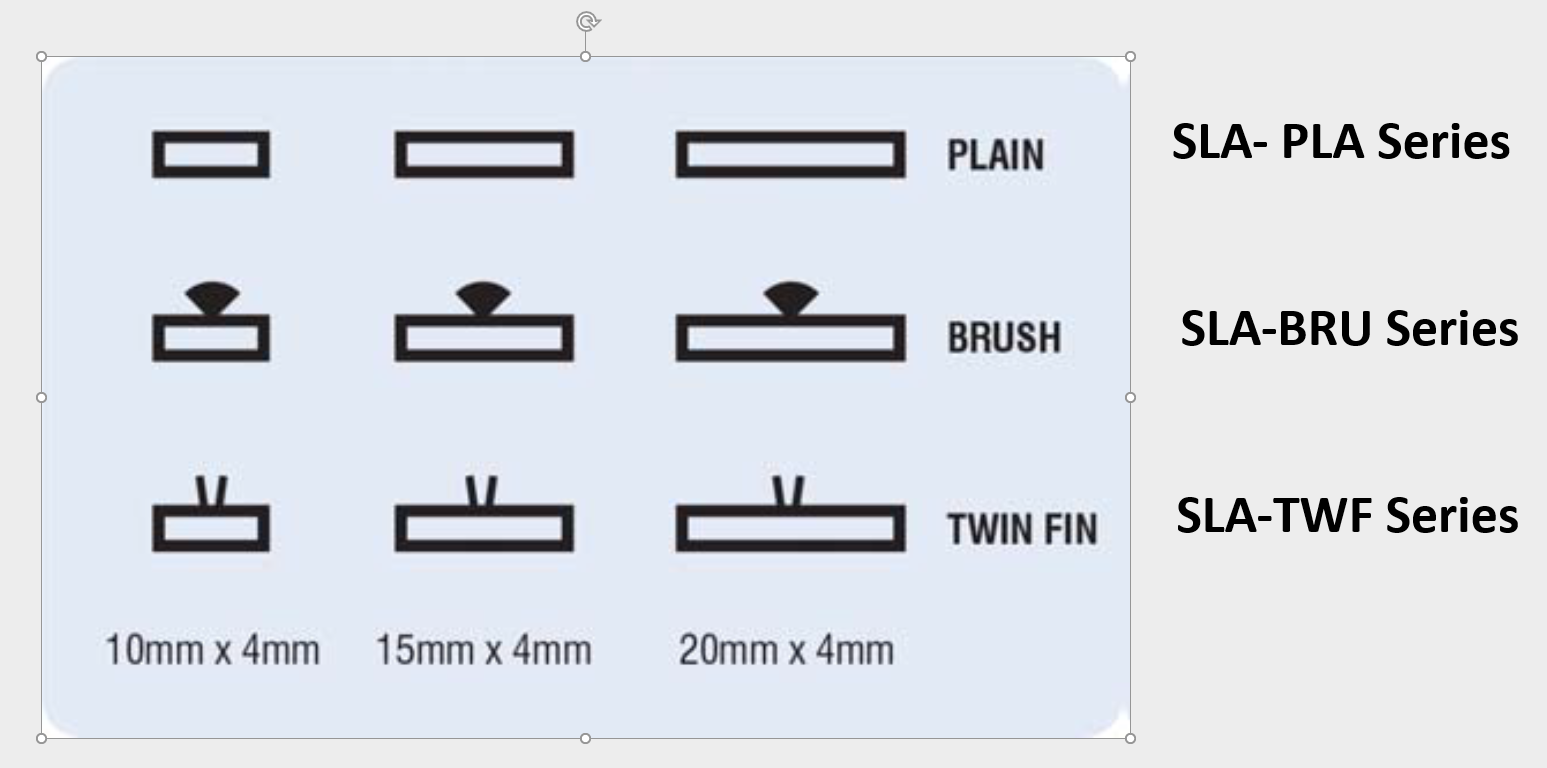

The seals are available in the following sizes: 10mm x 4mm, 15mm x 4mm and 20mm x 4mmn
depending on your performance requirements. The standard length supplied is 2100mm, although
special lengths can be produced to order. All seals are supplied complete with a self‐adhesive backing strip for ease of installation. Max gap size 3mm‐4mm
Plain, Brush or Fin varieties can be offered. Plain for fire only, Brush or Fin for fire, smoke (BS476 pt:31.1 and EN1634:pt3) and, in addition, acoustic performance.
Plain, Brush or Fin varieties can be offered. Plain for fire only, Brush or Fin for fire, smoke (BS476 pt:31.1 and EN1634:pt3) and, in addition, acoustic performance.
Halspan fire seals are PVC encapsulated in a range of colors. Any RAL color can be supplied subject
to special order. Halspan Seals are graphite based.
For full application details refer to the appropriate manual/ documentation
SLA‐ PLA Series
SLA‐BRU Series
SLA‐TWF Series
