Fire Rated 90 Minute Door
90 Min Halspan fire and smokes seals assemblies
HALSPAN FIRE AND SMOKES SEALS 90 minute Timber Door Assemblies (R90)
The R90 seals have been fully tested to BS476 pt22 1987 for performance to 90 minutes fire resistance in the specific application of Halspan Fire Rated Doors in timber frames

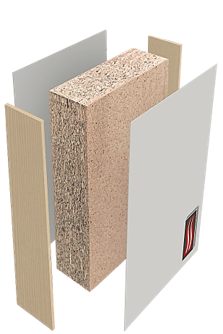

90 Min Layer Details
General Properties
64mm Internal Fire Door Black
Fire Rated to 90 minutes
Weight = 40.3 kg m2
Durability Tested to Severe Duty
Suitable for Veneer, Laminated or Paint Finishes
HALSPAN FD90 DATA SHEET
Halspan FD90 comprises a 3 layer particle board manufactured by continous press to produce a high performance timber door black.
General Properties
| Availability | Blank Sizes |
|---|---|
| 64mm | 2150mm x 1040mm |
| Composition | Spruce / Fire /recycled timber |
| Urea formaldehyde resin | |
| Paraffin wax / silica |
| Physical Properties | Average density (by weight) | 60kg/m3 (+/-10%) |
| Moisture content | Mex factory 6-10% | |
| Formaldehyde emission | EN13986-E1 | |
| 80 grit surface sanding |
Performance (Refer to relevent technical support manuals for full details)
| Fire | BS 476: part 22:1987 | |
| BS EN 1634-1:2000/2008 & BS EN 1363-1 :1999 | ||
| Acoustic | BS EN 180 141-3:1995 | uP TO 36 dB |
| Operation & Durability | DD 171: 1997 clauses 4.3, 4.4, 4.9,4.10,4.11 | -severe duty |
| EN 1191:2000 | in exess of 500,000 cycles | |
| PAS 23 clause 6.3 | Evaluated against | |
| Thermal | BS EN ISO 10077-2: 2003 | Up to 1.8W/m2K |
HALSPAN FIRE SEALS
Halspan have developed a range of fire and smoke seals to complement their range of fire rated
door blanks.
been undertaken to EN1634 pt1 in Spain, Poland, Hungary and other EU states.
Full details are available on request
The seals are available in the following sizes: 10mm x 4mm, 15mm x 4mm and 20mm x 4mmn
depending on your performance requirements. The standard length supplied is 2100mm, although
special lengths can be produced to order. All seals are supplied complete with a self‐adhesive
backing strip for ease of installation. Max gap size 3mm‐4mm
Plain, Brush or Fin varieties can be offered. Plain for fire only, Brush or Fin for fire, smoke
(BS476 pt:31.1 and EN1634:pt3) and, in addition, acoustic performance.
Plain, Brush or Fin varieties can be offered. Plain for fire only, Brush or Fin for fire, smoke
(BS476 pt:31.1 and EN1634:pt3) and, in addition, acoustic performance.
Halspan fire seals are PVC encapsulated in a range of colors. Any RAL color can be supplied subject
to special order. Halspan Seals are graphite based.
For full application details refer to the appropriate manual/ documentation
SLA‐ PLA Series
SLA‐BRU Series
SLA‐TWF Series
