Fire Rated 120 Minute Door

120 Min Halspan fire and smokes seals assemblies

layout styles

HALSPAN FIRE AND SMOKES SEALS 120 minute Timber Door Assemblies (R120)

120 Min Layer Details

General Properties

60mm Internal Fire Door Black
Fire Rated to 120 minutes
Weight = 40.3 kg m2
Suitable for Veneer, Laminated or Paint Finishes

style switcher

HALSPAN FD120 DATA SHEET

description

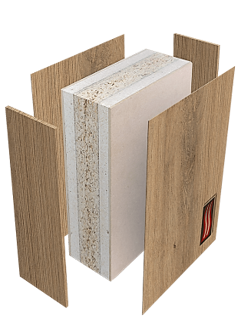

Halspan 120 comprises a 3 layer particle board core faced with magnesium Oxide with an outer facing of MDF for use as single or double application

Availabilit - Thickness

60.05mm * (FD120)

Blank Sizes mm

2200mm x 930mm
2390mm x 1190mm

General Properties

Compsition Physical Properties
Spruce/Fire/recycled timber + Magnesium Oxide + MDF Average density 48kg/m2
Water Based inorganic adhesive + Polyurethane Moisture content -ex factory -6-10%
Formaldehyde emission -EN13986-E1

Performance criteria (Refer to relevent technical support manuals for full details)

Fire
BS 476: part 22:1987
Acoustic
BS EN ISO 10140-2:2010

HALSPAN FIRE SEALS

Halspan have developed a range of fire and smoke seals to complement their range of fire rated
door blanks.
been undertaken to EN1634 pt1 in Spain, Poland, Hungary and other EU states.
Full details are available on request
The seals are available in the following sizes: 10mm x 4mm, 15mm x 4mm and 20mm x 4mmn
depending on your performance requirements. The standard length supplied is 2100mm, although
special lengths can be produced to order. All seals are supplied complete with a self‐adhesive backing strip for ease of installation. Max gap size 3mm‐4mm
Plain, Brush or Fin varieties can be offered. Plain for fire only, Brush or Fin for fire, smoke (BS476 pt:31.1 and EN1634:pt3) and, in addition, acoustic performance.
Plain, Brush or Fin varieties can be offered. Plain for fire only, Brush or Fin for fire, smoke (BS476 pt:31.1 and EN1634:pt3) and, in addition, acoustic performance.
Halspan fire seals are PVC encapsulated in a range of colors. Any RAL color can be supplied subject
to special order. Halspan Seals are graphite based.
For full application details refer to the appropriate manual/ documentation
SLA‐ PLA Series
SLA‐BRU Series
SLA‐TWF Series
